$999.00
Built with a corrosion-resistant sensor and temperature-controlled electronics, the CDG-500 delivers reliable performance across demanding environments. Its integrated setpoint relays allow direct control of valves, pumps, or alarms, enabling automated process management without the need for additional controllers.

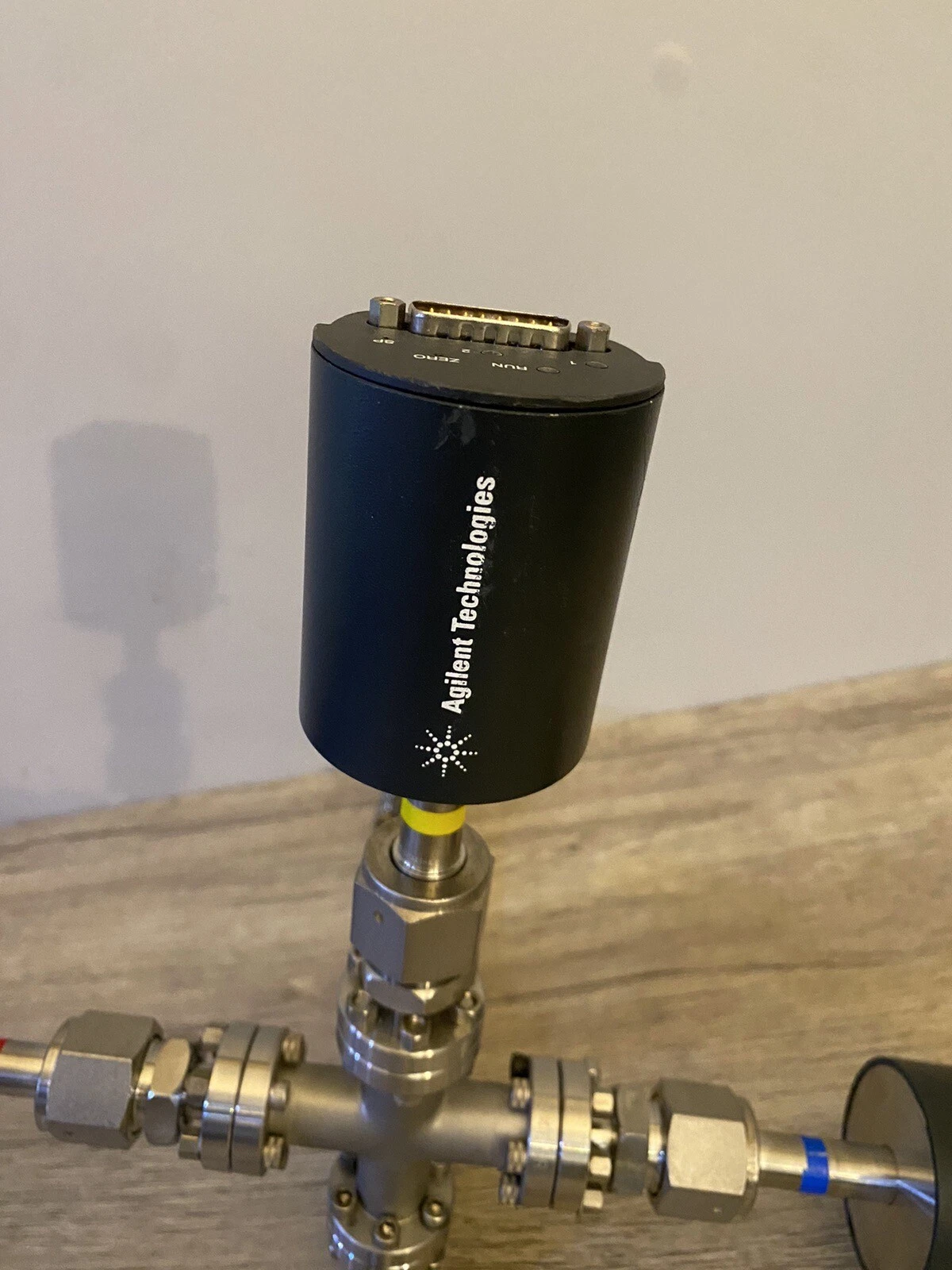

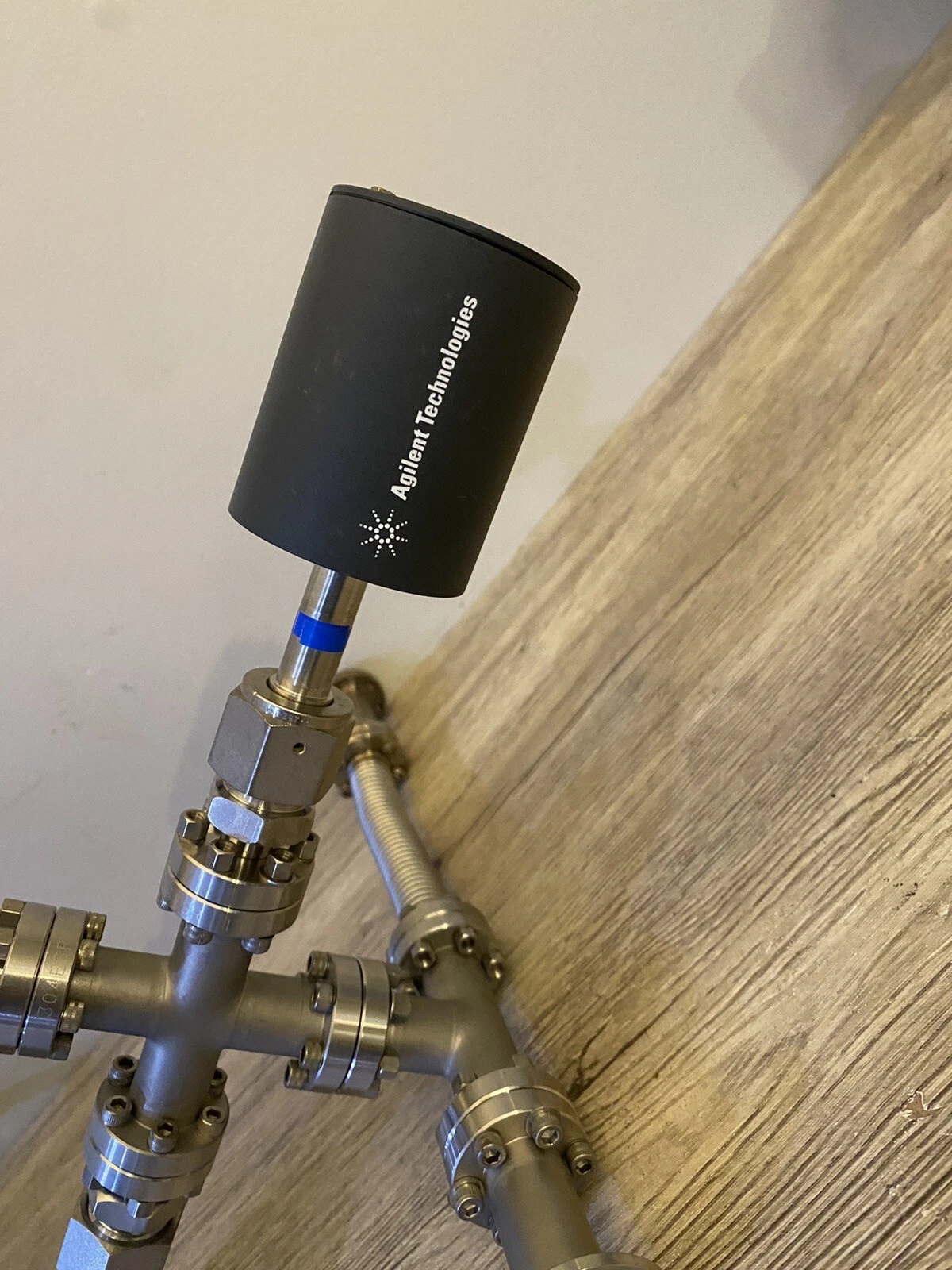

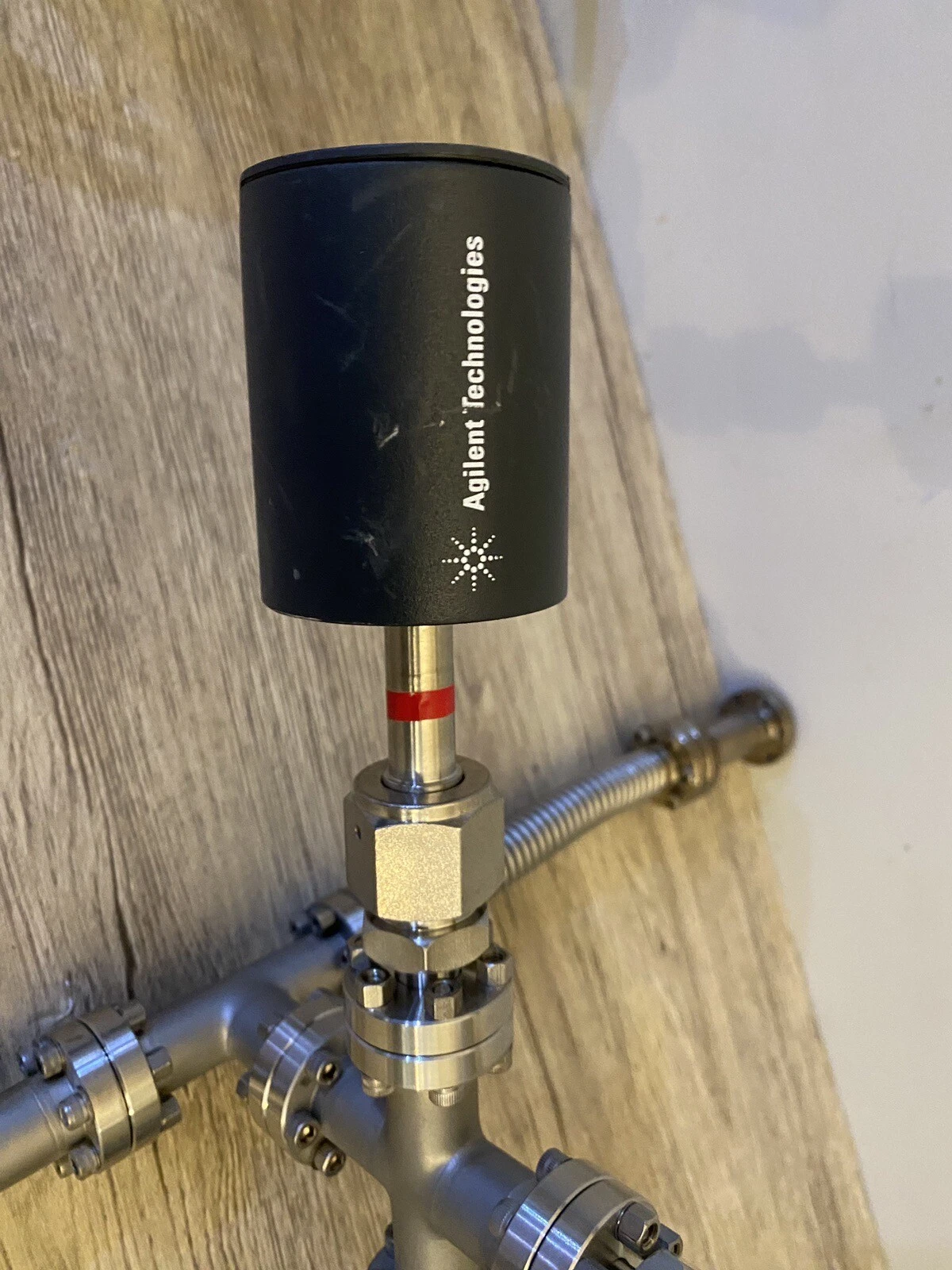

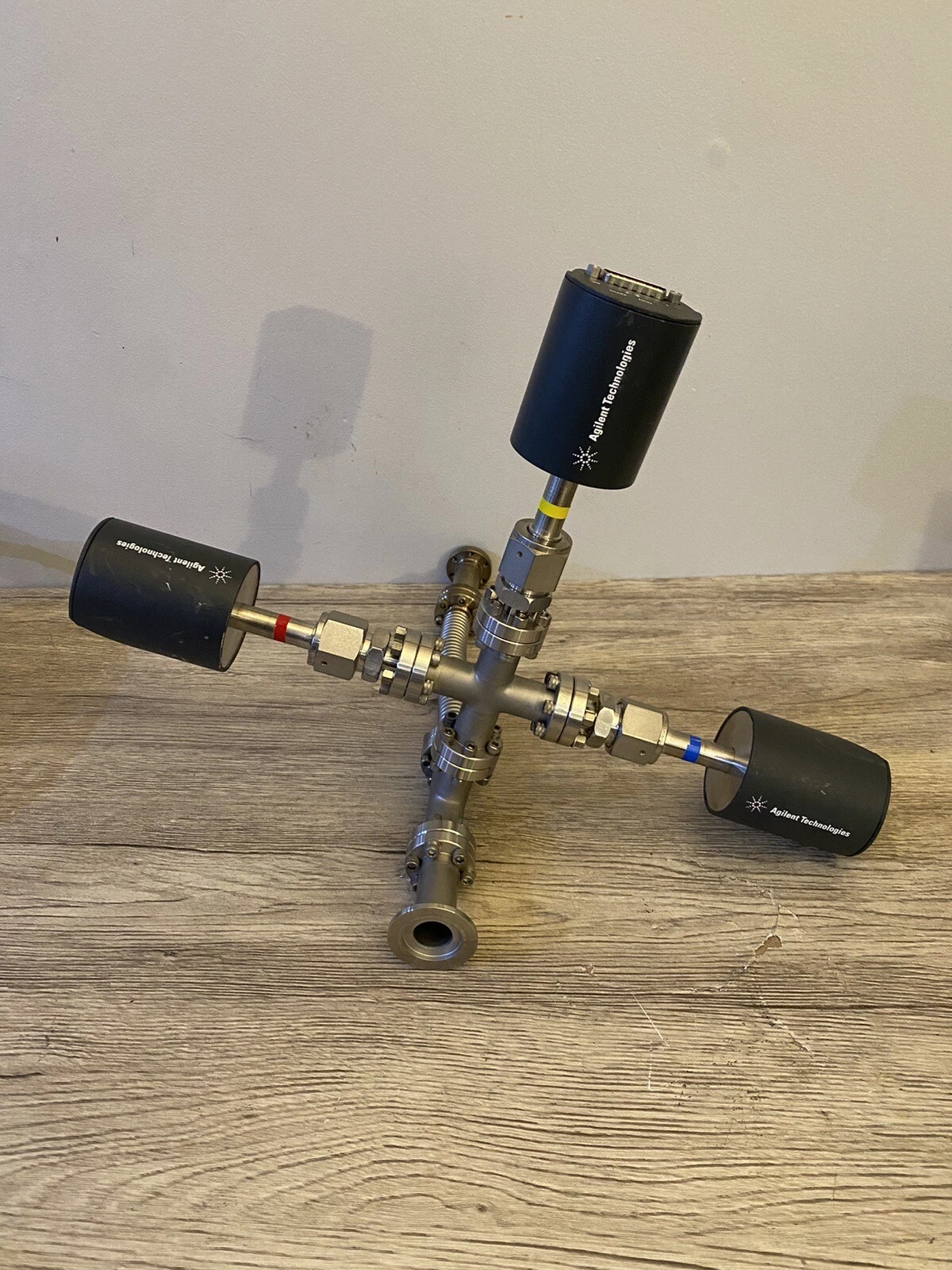

The Agilent CDG-500 Capacitance Diaphragm Gauge (100 Torr, Setpoints, Model CDG500T0100VCR8S) is a high-precision vacuum pressure measurement instrument engineered for accurate and repeatable low-pressure monitoring. Designed for critical vacuum applications, this capacitance manometer provides stable, gas-independent readings, making it ideal for semiconductor processing, research laboratories, coating systems, and industrial vacuum processes.
🔧 Key Features
• Measurement range: 0–100 Torr full scale
• Gas-independent capacitance diaphragm measurement technology
• Integrated adjustable setpoint relays for process control
• High accuracy and repeatability
• Temperature-stabilized sensor for minimal drift
• VCR-type vacuum fitting for secure, leak-free installation
• Analog output compatible with most vacuum controllers and PLC systems
⚙️ Technical Specifications
• Model: CDG500T0100VCR8S
• Pressure Range: 100 Torr Full Scale
• Measurement Principle: Capacitance diaphragm (absolute pressure)
• Output Signal: Analog voltage output
• Fitting: 8-VCR vacuum connection
• Accuracy: High-precision laboratory/industrial grade
• Operating Temperature: Controlled internal sensor temperature
• Power Requirement: Standard CDG-500 supply input
💼 Applications
• Semiconductor manufacturing and wafer processing
• Thin film deposition and sputtering systems
• Vacuum furnaces and heat treatment equipment
• Research and development laboratories
• Leak detection and vacuum system monitoring
• Pharmaceutical and materials processing
✅ Benefits
• Extremely accurate low-pressure measurement
• Stable readings regardless of gas type
• Enables automated vacuum process control
• Improves repeatability in sensitive manufacturing
• Reduces system calibration and adjustment time
📦 Package Contents
• 1 × Agilent CDG-500 Capacitance Diaphragm Gauge (100 Torr)
• Integrated setpoint control outputs
• VCR vacuum fitting connection
⭐ Why Choose This Gauge?
The Agilent CDG-500 series is trusted in professional vacuum environments where precision is critical. With its temperature-regulated sensor, reliable setpoints, and gas-independent accuracy, this gauge is an excellent solution for technicians and engineers requiring dependable pressure measurement and automated process control.
